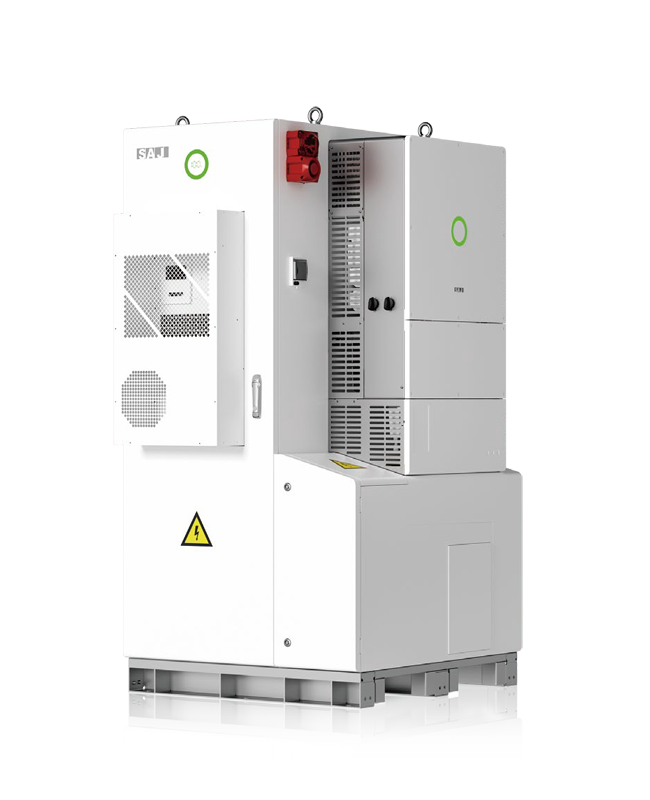

CHS2 is suitable for various scenarios such as large residential areas, supermarkets, farms, and small factories. It integrates functions including power generation, conversion, storage, and utilization. With its high-end hardware configuration and intelligent IoT software, CHS2 supports various application modes such as self-consumption, time-of-use , and backup mode. It meets daily usage scenarios and can also connect with other devices such as diesel generators, helping owners achieve more stable, secure, and economical electricity needs.

Better Performance

• String current 22.5A, matching high power (210) PV panel

• 6 MPPT, support 200% oversizing

• Adopting C&I 280Ah cell, good performance and higher energy density

• Built-in STS function, on-off grid switch in 20ms

Ultimate Safety

• AFCI as standard to prevent fire

• Support core health warning, CO, fire detection, cabinet-level fire protection

• AC and DC type II SPD

Highly Integrated

• Pre-installed in the factory, no need for on-site installation and debugging

• Accessing to DG(diesel generator), no need for additional equipment

• AC coupling available

Higher Revenue

• PV and Battery  are dc coupled with high efficiency

• Wide environmental adaptability improves VPP revenue

• Intelligent  scheduling, and multiple scheduling modes
